Model	BC-1046D
Display	UPPER: 6-Digit, 7-Seg 0.56″, RED LED Display
Display	LOWER: 4-Digit, 7-Seg 0.4″, GREEN LED Display
Size (mm)	96 (H) X 96 (W) X 43 (D)
Panel Cutout (mm)	92 (H) X 92 (w)
Output	1-Relay, 1-C/O, 230V AC, 5A & Buzzer
Power Supply	230V AC, 50 Hz, Approx 4VA
Sensor	Proximity PNP/NPN (Selectable) & Micro Switch
Memory	Nonvolatile
Protection Level (As per request)	IP-65 (Front side) As per IS/IEC 60529:2001
Operating Temperature	0°C To 55°C
Relative Humidity	Upto 95% RH Non Condensing

Device application	Distribution
Range of product	Acti9
Range	Acti9
product name	XC60
Product or component type	Miniature circuit-breaker
Device short name	xC60
Poles description	1P
Number of protected poles	1
[In] rated current	25 A

Model Name	VFD015EL21W-1
Series	VFD-EL-W Series
Input Voltage – Phase	230 V – 1 Phase
Motor Power Range	1.5 KW – 2 HP – 7.5 A
Weight	1.35 Kg

Model Name	VFD007EL21W-1
Series	VFD-EL-W Series
Input Voltage – Phase	230 V – 1 Phase
Motor Power Range	0.75 KW – 1 HP – 4.2 A
Weight	1.35 Kg

Model Name	VFD2A7MS43ANSAA
Series	MS-300 Series
Input Voltage – Phase	415 V – 3 Phase
Motor Power Range	1 HP – 0.75 KW
Frequency	0 – 599 Hz
Frame Size	A5
IP Level	IP 20
EMC Filter	Optional
Normal Duty* Amps	3.0 A
Heavy Duty** Amps :	2.7 A

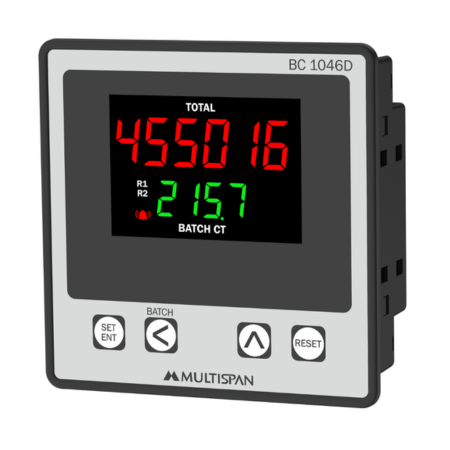

MULTISPAN- BC1046D BATCH COUNTER

Description

DESCRIPTIONS:

Batch Counter

Reviews

DELTA: VFD2000C43A-00 , 270Hp/ 200Kw

Delta High Performance Vector Control Drive

Multi-column display for the drive status

Built in Intelligent PLC Functions

Advanced network functions

Precise position and speed control with FOC+PG Mode

Product category : AC Drive

sub-category : Standard Drive

Partner name: Delta

Series name : C2000 Plus

Technical Details:

Supply Type (Ø) : 3-Phase, 415V

KW : 200 Kw

Rated output current : 395 Amp.

Specification:

Model Name

VFD015EL21W-1

Series

VFD-EL-W Series

Input Voltage – Phase

230 V – 1 Phase

Motor Power Range

1.5 KW – 2 HP – 7.5 A

Weight

1.35 Kg

application:

1. Edge banding machine

2. Logistic conveyor

3. Material handling

4. Constant pressure pump

Specifications

Panel Mount - PMF Series

Output Voltage : 24Vdc

Output Power : 240W

Output Current : 110A

Input Voltage Range : 180-264Vac (Selectable by Switch)
