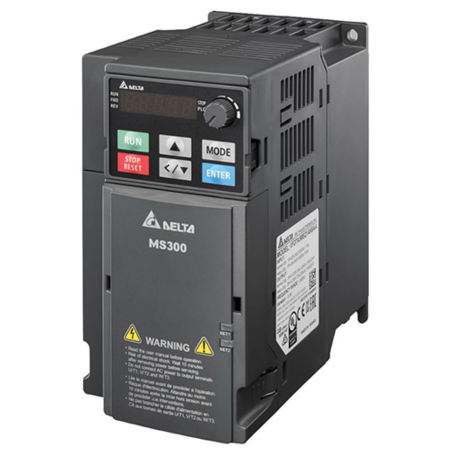

MODEL: VFD11AMS21ANSAA DELTA- AC DRIVE 3HP/2.2Kw 1Ph. 230Vac

MODEL: VFD11AMS21ANSAA DELTA- AC DRIVE 3HP/2.2Kw 1Ph. 230Vac

1 customer review
SKU: ZG.MS.10021022
In Stock

Original price was: ₹22,950.00.Current price is: ₹12,175.00.

SPECIFICATION:

Model Name VFD11AMS21ANSAA
Series MS-300 Series
Input Voltage – Phase 230 V – 1 Phase
Motor Power Range 3 HP – 2.2 KW
Frequency 0 – 599 Hz
Frame Size C1
IP Level IP 20
EMC Filter Optional
Normal Duty* Amps 4.8 A
Heavy Duty** Amps : 4.2 A

APPLICATION:

1. Machine Tools
2. Textile Machines
3. Woodworking Machines
4. Packaging Machines
5. Fans
6. Pumps
7. Air Compressors
8. Rewinder Machines
9. Slitter Machines
10. Printing Machines
11. Coil Winding Machines
In Stock
Add to Wishlist
Add to Wishlist
Categories: ,
Tag:

Description

TECHNICAL SPECIFICATIONS:

KW 2.2KW HP 3HP Input Supply 1-Phase, 230V
Output Current 11Amp. Braking Chopper Built in Output Frequency (HZ) 0 to 599.00 Hz
PID Function Built in PLC Function Built-in (2k steps), MODBUS COM Built in
CANopen Optional PROFIBUS DP Optional PROFINET Optional
DeviceNet Optional Modbus TCP Optional EtherNet/IP Optional
EtherCAT Optional BACnet NA PG Close Loop Built in (With One High speed input capacity 33 khz)
KEYPAD Built in Detachable Control Mode V/F, SVC, FOC Sensorless

Ready to ship in 1 business day from India



Shipping Policy

Courier



Refund Policy

Bank Transfer

Additional information

Weight 1.90 kg
