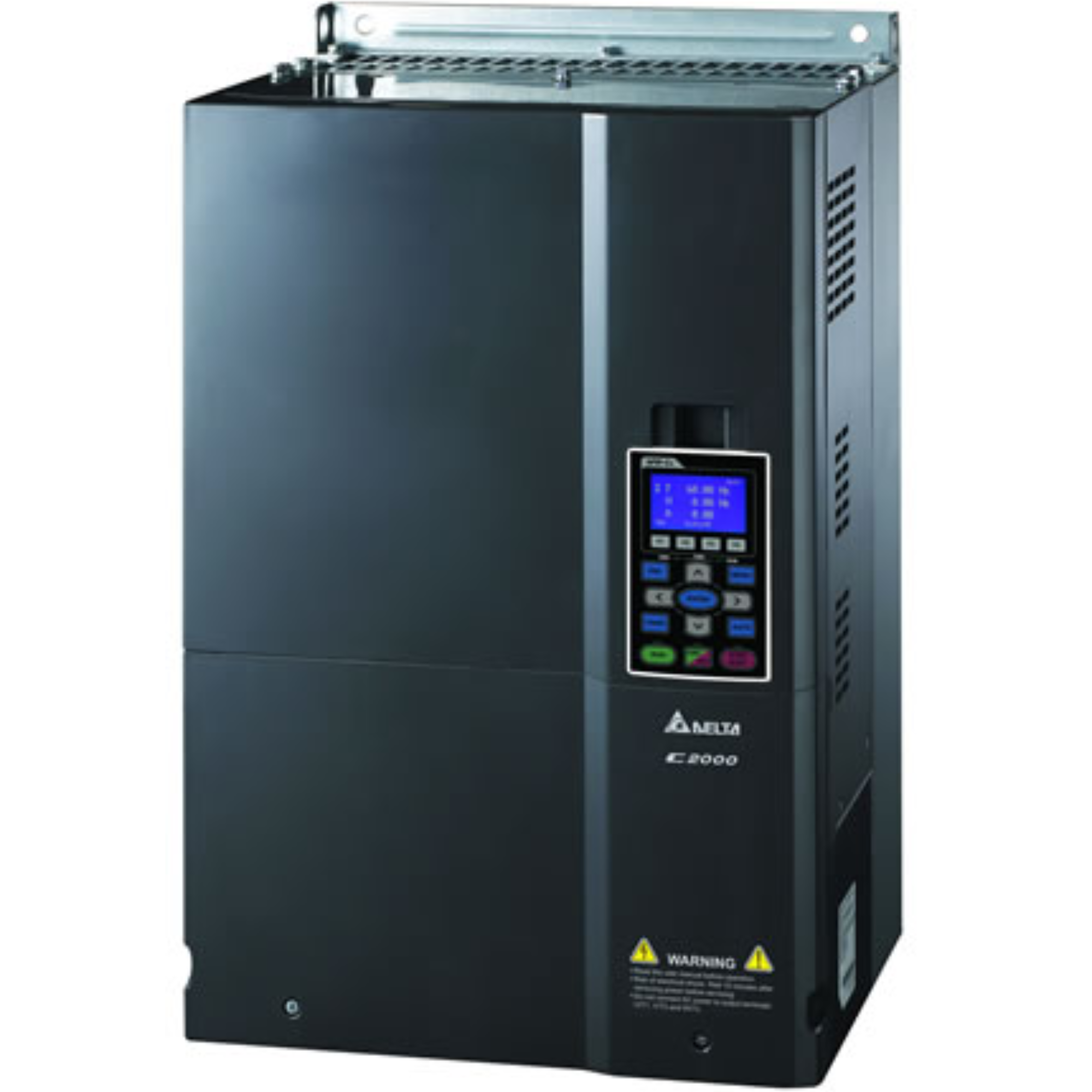

DELTA- VFD1320C43A-00, 180HP/132Kw Heavy Duty
Weight 85 kg
Dimensions 90 × 58 × 50 cm
HSN

85044090
Make

DELTA

DELTA- VFD1320C43A-00, 180HP/132Kw Heavy Duty

SKU: ZG.C2.20031320
In Stock

Original price was: ₹541,540.00.Current price is: ₹270,770.00.

Technical Details:

DELTA: VFD1320C43A-00 , 180Hp/ 132Kw
Delta High Performance Vector Control Drive
 Multi-column display for the drive status
 Built in Intelligent PLC Functions
 Advanced network functions
 Precise position and speed control with FOC+PG Mode
Product category : AC Drive
sub-category : Standard Drive
Partner name: Delta
Series name : C2000 Plus
Technical Details:
Supply Type (Ø) : 3-Phase, 415V
KW : 132 Kw
Rated output current : 260 Amp.
In Stock
Add to Wishlist
Add to Wishlist
Category:

Description

Technical Specification:

KW 132KW HP 180HP Input Supply 3-Phase, 415V
Output Current 260Amp. Braking Chopper Built in up to 30kW/40HP Output Frequency (HZ) 0 to 599.00 Hz
PID Function Built in PLC Function Built-in PLC (10k steps) MODBUS COM Built in
CANopen Optional PROFIBUS DP Optional PROFINET Optional
DeviceNet Optional Modbus TCP Optional EtherNet/IP Optional
EtherCAT Optional BACnet NA PG Close Loop Built in (With One High speed input capacity 33 khz)
KEYPAD Built in Detachable Control Mode IMVF, IMVF+PG, IM/PM SVC, IMFOC+PG, PMFOC+PG,
IMFOC Sensorless, PM Sensorless, IPM Sensorless,
SynRM Sensorless, IM TQCPG, PM TQCPG, IM TQC Sensorless

Additional information

Weight 85 kg
Dimensions 90 × 58 × 50 cm
HSN

85044090
Make

DELTA
