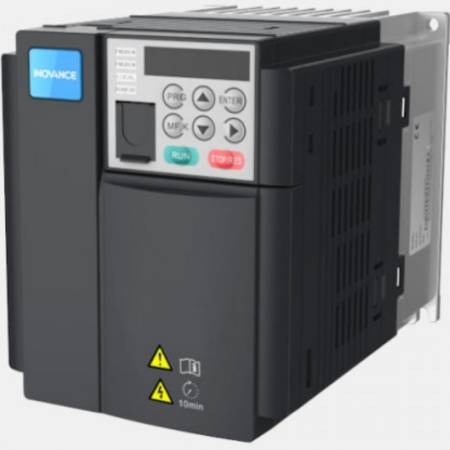

INOVANCE- MD310T18.5B-INT , VFD, 25HP 3Phase 415Vac
Original price was: ₹83,000.00.₹39,800.00Current price is: ₹39,800.00.
MODEL : MD310T18.5B-INT, 25HP, 3Phase 415Vac
- Open loop V/f & sensorless vector control
- Moment of collapse:
- 150% at 0.25 Hz for SVC
- Automatic torque boost
- Slip compensation
- Communication options:
- Modbus RTU
- CANlink
- Simplified parameters for easy commissioning
- 4-independent S-ramp
- Flexible programmable I/O connectivity
- Adjustable DC-braking
- Advanced error messages
- 500 Hz Output frequency
- Standard dynamic braking module
- CE certified
In Stock
Description
Technical specifications of Inovance MD310 inverter
| Technical specifications | Parameter | |
| Power input | Input voltage | 3 Phase 415V |
| Input frequency (Hz) | 50Hza~60Hz | |
| Power output | Maximum output voltage | 0~Input voltage |
| Control characteristics | Output frequency (Hz) | 0~500Hz |
| Control mode | V/F, SVC | |
| Engine type | Asynchronous motor | |
| Starting Torque | 150% at 0.5 Hz for SVC100% at 1.0 Hz for FVC | |
| Overload capacity | 150% for 60s180% for 2s | |
| Terminal | Digital input | 5 digital inputs |
| High speed pulse input | Maximum speed reaches 50KHz | |
| Analog Input | AI1:0~10V/0~20mA AI2:0~10V/0~20mA |
|
| Analog Output | AO1:0~10V | |
| Digital output | T/CT/A T/BT/A |
|
| Protection function | Protection against incidents such as overcurrent, high voltage, undervoltage, overheating, phase loss, phase deviation, output wire breakage, overload, etc. | |
| Other functions | Cooling | Self cooling |
| Extended keyboard | Extendable | |
| IP | IP20 | |
| Attach the discharge resistor | Can attach discharge resistor | |
| Working temperature | 0~50 ° C | |
| Media | RS485 | |
Ready to ship in 1 business day from India
Shipping Policy
Courier
Refund Policy
Bank Transfer
Additional information
| Weight | 4 kg |
|---|
Be the first to review “INOVANCE- MD310T18.5B-INT , VFD, 25HP 3Phase 415Vac”
POLYCAB- WIRE 1.5mm OPTIMA Copper
Seller: Metro Automation
In Stock

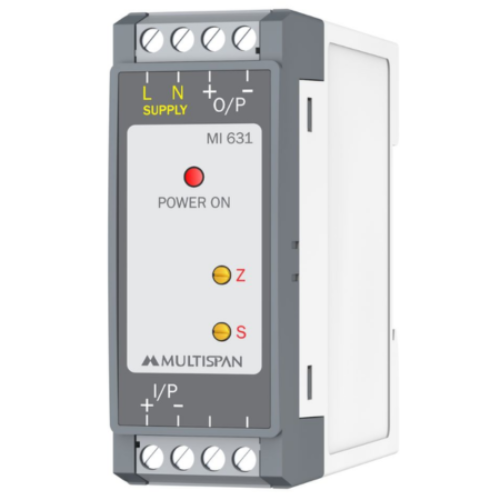

MODEL: MI-631P Input: PT100 Sensor Output: 0-10V DC
